Projecting Signage: Best Practices for Visibility and Durability

Projecting signs grab attention at eye level and from passing angles, turning a storefront or venue into a visible landmark. You can boost foot traffic and brand recognition by choosing the right projection type, design and placement for your space.

Practical design choices—contrast, scale, and simple messaging—make projecting signs readable from a distance and under different lighting. Proper installation and thoughtful placement keep signs safe, compliant and effective so your investment performs long term.

Key Takeaways

• Understand how projecting signs work and why they suit street-facing locations.

• Prioritise clear visuals and correct proportions to maximise visibility.

• Install with safety and local rules in mind to protect your investment.




Understanding Projecting Signage

Projecting signage sticks out from a building face to catch sightlines along pedestrian routes and busy streets. The sign company recommends practical definitions, the most common materials, and the main sign types used in retail and hospitality settings.

Definition and Key Features

Projecting signs mount perpendicular to a building façade so you and passers-by can read it from both directions along a pavement or street. Typical projections range from 300 mm to 1200 mm from the wall, depending on local planning rules and sightline requirements.

Key features you should look for include visibility, mounting angle, structural support and compliance. Visibility covers letter height, contrast, and illumination; mounting angle determines how far the sign extends into the line of sight; structural support involves brackets, fixings and wind-loading calculations; compliance means adherence to local planning, listed-building constraints and building regulations.

Illumination often uses LED modules for even light distribution and energy efficiency. You should also consider weatherproofing, anti-corrosion finishes and ease of replacement for graphics or lighting components.

Common Materials Used

Aluminium is the most common substrate because it balances weight, rigidity and corrosion resistance. You will see folded aluminium trays, routed letters and aluminium composite panels (ACP) used for durable, lightweight faces.

Acrylic is widely used for illuminated faces and letters due to its clarity and ability to diffuse LED light evenly. Polycarbonate offers impact resistance where vandalism or high wind is a concern, though it scratches more easily than acrylic.

Finish options include powder-coating, vinyl wrapping and digitally printed overlays. Stainless steel and brass appear in premium installations for longevity and a high-end aesthetic; timber is used in heritage or rustic designs but requires regular maintenance.

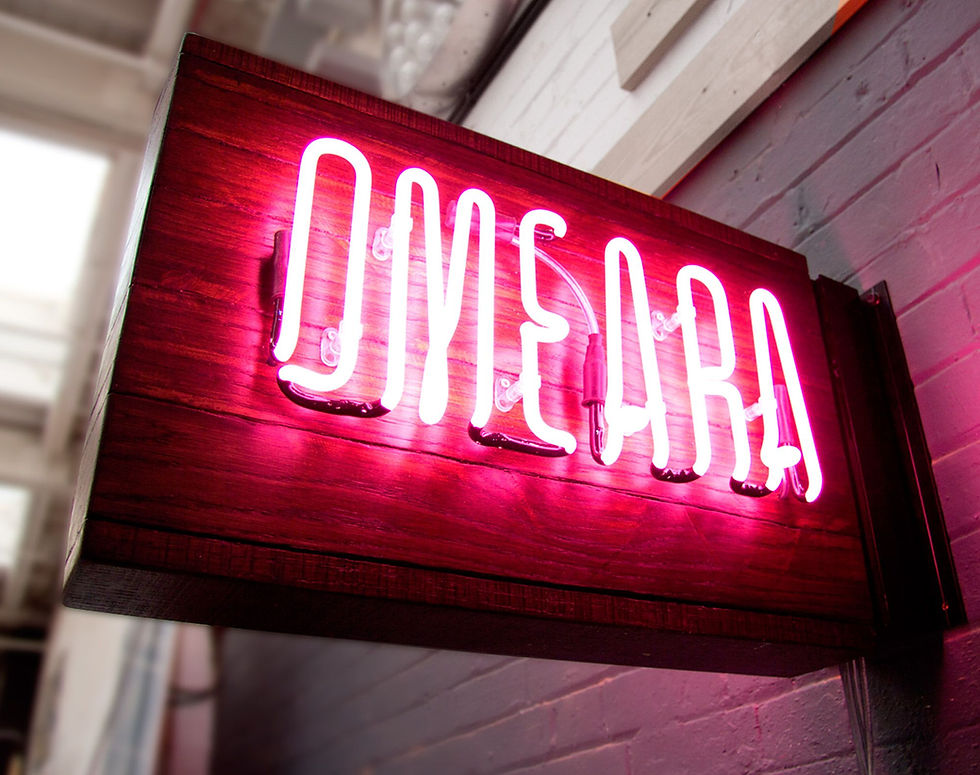

Types of Projecting Signage

Blade signs are flat panels mounted on two brackets and commonly used by shops to display a logo or business name perpendicular to the façade. They suit narrow pavements and heritage streets where low visual clutter is essential.

Boxed or tray signs enclose illumination within a shallow cabinet; these provide high-impact night-time visibility and can use snap-fit faces for easy artwork changes. Halo-lit letters mount on a backing plate to create a luminous outline, offering a premium appearance for restaurants and hotels.

Flag signs combine fabric or metal faces attached to a single projecting arm for lightweight, cost-effective branding. Totem-style projecting signs and double-sided hanging signs serve larger sites where increased projection and height improve sightlines.

Design Principles for Effective Projecting Signage

Focus on ensuring your projecting signs can be read quickly, align with brand identity, and perform reliably across lighting conditions. Prioritise contrast, typography, placement and illumination to maximise impact and minimise maintenance.

Visibility and Readability

Choose letterforms with clear apertures and generous x‑height to aid legibility at distance. Sans‑serif or open, humanist typefaces work best; avoid condensed or decorative faces that blur under motion or low light.

Size text by viewing distance: use at least 1 inch (25 mm) of letter height per 10 feet (3 m) of viewing distance as a baseline, then increase for competing visual clutter. Track spacing to prevent letters appearing crowded when mounted at an angle.

Use high contrast between text and background. For projecting signage, prefer dark text on pale backgrounds for daytime, and light text on dark backgrounds when backlit. Test with the actual projection angle and ambient backgrounds like neighbouring façades or street furniture.

Account for stroke weight and sign material. Thin strokes disappear under projection hotspots; allow 20–30% heavier weight than print equivalents. For three‑dimensional signs, add shadow gaps to preserve letter forms from edge lighting.

Branding Integration

Translate your brand’s core elements—colour, logo proportions and tone—into formats that suit projection constraints. Maintain logo clearspace and minimum reproduction sizes specific to projecting surfaces.

Simplify complex logos into single‑colour or two‑colour variants for projection. Reduce fine detail and gradients; instead use solid fills and bold shapes that remain recognisable when scaled or viewed at oblique angles.

Define a controlled palette with primary and secondary colours adjusted for luminance. Provide hex/RGB and CIE Lab* values so projection technicians can match hues under varying projector types. Include acceptable contrast ratios for text over brand panels.

Create a usage guide specifying acceptable type families, minimum sizes, exclusion zones and placement templates for different mounting heights. Supply vector files with stroke outlines converted to fills to avoid rasterisation artefacts in projection workflows.

Lighting Considerations

Assess ambient lighting at multiple times: pre‑dawn, midday and peak evening. Measure lux levels and note nearby light sources such as streetlamps, shopfronts and vehicle headlights that may wash out or create competing glare.

Select projection technology matched to distance and surface. Short‑throw projectors suit narrow streets; high‑lux LED projectors suit wide façades. Specify lumen output and contrast ratio requirements rather than model names, and include throw ratio and lens shift specifications.

Design for controllable illumination: include shielding to prevent spill, adjustable mounts for aiming, and dimming controls linked to photocells or timers. Factor in thermal management and IP rating for outdoor fixtures.

Plan for maintenance: provide access for lens cleaning and alignment, schedule lamp or LED module replacement intervals, and document calibration procedures to maintain colour and brightness consistency over time.

Installation and Placement Best Practices

Select a location that maximises visibility for your target audience, ensures safe installation access, and minimises obstructions. Verify structural capacity and regulatory constraints before committing to mounting points.

Location Selection

Choose mounting sites based on sightlines from typical approach paths and dwell points. For pedestrian-facing projections, position units 2–3 metres above ground to avoid obstruction and unwanted glare; for vehicular or high-angle viewing, mount between 4–6 metres depending on road speed and viewing distance. Consider ambient light: place projectors where direct sunlight or strong artificial lighting won’t wash out the image. Allow a clear projection throw with at least 20% margin beyond calculated throw distance to permit small adjustments.

Account for environmental exposure: avoid locations where rain, snow, or salt spray will hit the lens directly. Plan cable routes and access for maintenance without obstructing public thoroughfares. Use sightline diagrams and mock-ups at full scale when possible to confirm image placement before final installation.

Structural Requirements

Confirm the mounting structure can support the static and dynamic loads of the projector, enclosure, and brackets. Calculate combined weight and apply a safety factor of at least 4:1 for cantilever mounts. Use stainless-steel fixings and vibration-resistant fittings in outdoor or high-vibration locations.

Provide secure, weatherproof enclosures rated to at least IP65 for outdoor installations. Ensure adequate ventilation with filtered airflow to prevent overheating; include thermostatically controlled fans if ambient temperature exceeds device specifications. Design mounts for serviceability: use quick-release brackets or access panels so you can replace lamps, clean optics, or adjust alignment without full disassembly.

Compliance With Local Regulations

Check local planning permissions and advertisement regulations before installing projecting signs. Many councils treat projected images as illuminated adverts; obtain the relevant consent where required and submit scale drawings showing illumination levels and operating hours. Measure and certify light spill and lux levels at property boundaries to comply with neighbouring amenity rules.

Follow electrical and safety codes: installations must use qualified electricians, have RCD protection, and comply with IP/IK ratings for wet locations. Where projections could distract drivers, adhere to highway authority guidance on luminance, colour, and flash frequency. Keep documentation of approvals, risk assessments, and maintenance records on site for inspections.

Benefits and Applications of Projecting Signage

Projecting signage increases visibility at night and in daytime by placing bright, focused images on walls, canopies or pavements. The sign company has seen that projecting signs offer flexible messaging, low physical footprint, and programmable content for timed or location-specific promotions.

Enhancing Footfall and Visibility

Projecting signage draws attention through motion, colour contrast and sizing that standard flat signs cannot match. You can project larger-than-life logos or animations onto building façades from 5–50 metres, making your brand readable from a distance and along sightlines where traditional signs would be blocked.

Use high-lumen LED projectors (5,000–30,000 lumens) outdoors to maintain clarity in urban light. Combine short-throw lenses for close-up shopfronts and long-throw optics for landmark projection to reach different audience distances. Positioning matters: mounting at 2.5–6 metres above pavement minimises obstruction and vandal risk while aligning with pedestrian eye-level.

To explore related insights, read our blogs on projected signage and illuminated projecting signs for deeper guidance on design and performance.

Popular Use Cases

Retail: You can project daily offers, interactive wayfinding and window animations to increase walk-ins and impulse purchases. Fashion stores often use seasonal motion graphics to refresh displays without physical refits.

Events and hospitality: Projection mapping transforms exterior walls or dancefloors for one-off activations, signage, or branded experiences. Hotels project event schedules and welcome messages on porte-cochères for arriving guests.

Urban advertising and public messaging: Councils and transport hubs use projections for temporary information, curfew notices or cultural promotion without building consent for permanent fixtures. You can deploy portable units for pop-up campaigns.

Corporate campuses and exhibitions: Use crisp, changeable projecting signs to display meeting room directions, sponsor logos, or trade-stand schedules. Projectors reduce the need for printed collateral and speed up last-minute updates.

The sign company recommends projecting signs for businesses seeking maximum visibility, brand impact, and modern appeal. By following these best practices, your projecting signage will stand out and endure.

Maintenance and Longevity

Projecting signs require routine checks of lamp/LED modules, optical alignment, and cooling. Replace consumables—lamp bulbs or dust filters—according to manufacturer schedules; LED engines last longer (20,000–50,000 hours) but still need thermal management checks every 6–12 months.

The sign company recommends protecting projecting signs with IP‑rated housings (IP65 or higher for outdoor units) and vibration-damping mounts to extend service life. Clean lenses quarterly in dusty environments and verify mounting anchors annually to prevent drift that blurs images.

The sign company also suggests planning for software updates and content backups for your projecting signs. Maintain a spare projector or key components to avoid downtime. Track operating hours and keep a log to forecast replacement costs and schedule proactive maintenance for all projecting signs.
